Air Compressor

Especially suitable for PET bottle blowing.

Product Description

/instructions

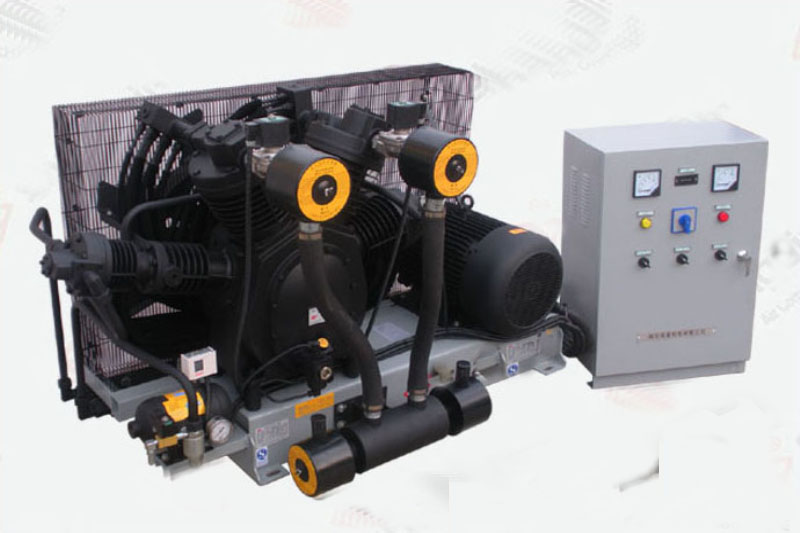

Air Compressors (single unit)

Discharge capacity: 2.0Nm³/min

Discharge pressure: 3.0~4.0Mpa

Installed power: 30HP(22KW)

series

Model No

Air Flow

(Nm³/min)

Pressure

（Mpa）

Power

（KW）

Weight

(kg)

Size (mm)

Length×Width×Height

83SH

83SH-2230

2.0

3.0

680

2170×1020×1050

83SH-2240

2.0

4.0

680

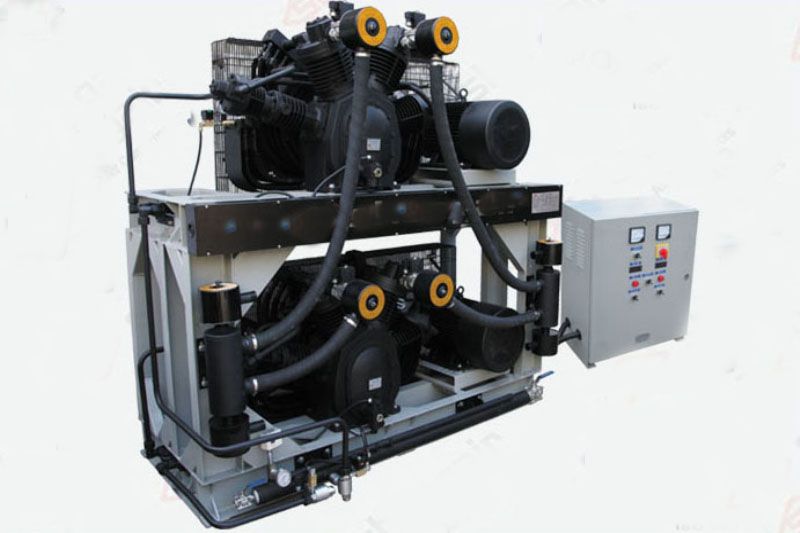

Air Compressor (Double Deck)

Discharge capacity: 4.0Nm³/min

Discharge pressure: 3.0~4.0Mpa

Installed power: 30HP×2(22KW×2)

series

Model No

Air Flow

(Nm³/min)

Pressure

（Mpa）

Power

（KW）

Weight

(kg)

Size (mm)

Length×Width×Height

83SH

2I-83SH-2230

4.00

3.0

22×2

1500

2100×1050×2250

2I-83SH-2240

4.00

4.0

22×2

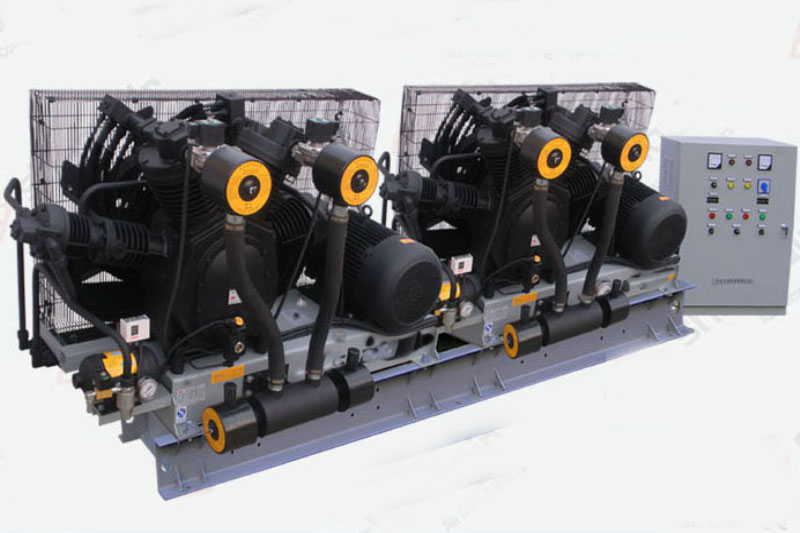

Air Compressor (Double-Engine Set)

Discharge capacity: 4.0Nm³/min

Discharge pressure: 3.0~4.0Mpa

Installed power: 30HP×2 (22KW×2)

series

Model No

Air Flow

(Nm³/min)

Pressure

（Mpa）

Power

（KW）

Weight

(kg)

Size (mm)

Length×Width×Height

83SH

2-83SH-2230

4.00

3.0

22×2

1550

3780×1100×1260

2-83SH-2240

4.00

4.0

22×2
